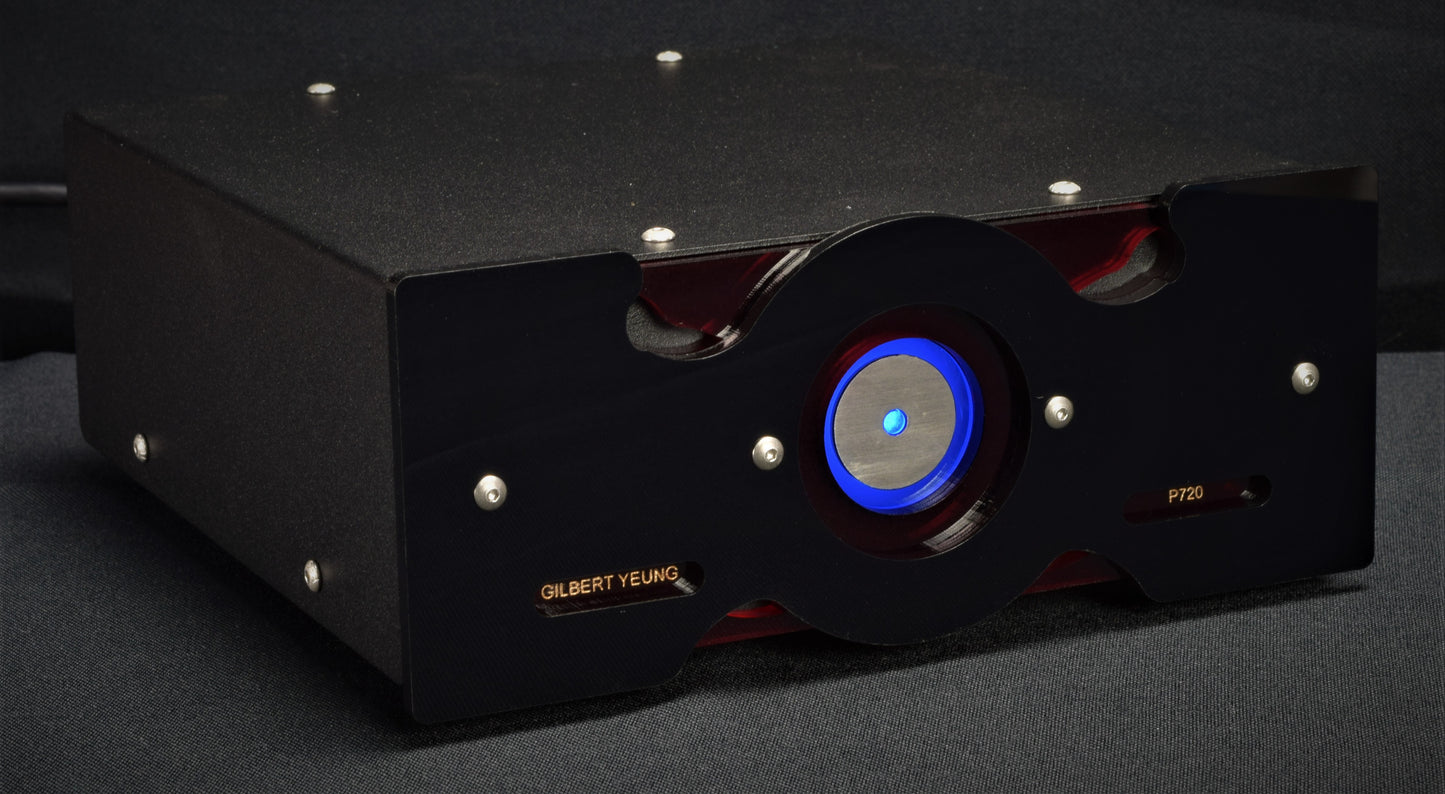

P720

The signal coming from your turntable cartridge is incredibly small, even more so with moving coil carts compared to most moving magnet varieties. Considering how much amplification is required to bring this voltage to line level, noise floor and the quality of amplification can make or break the performance of a phono preamp.

All products built by Angela-Gilbert Yeung are done by hand, one component at a time. Every connection is done via direct point to point wiring via solder with no extra connectors or joints. This means the absolute lowest resistance and number of points of contact in the circuit that can cause signal loss, pick up noise, or fail bringing you even closer to the music. Learn More

Features

The P720 takes the best features of the other two phono preamplifier models and combines them into this unit. Moving coil gain is adjustable between 61dB-87dB via stepped attenuation. Cartridge impedance loading is user adjustable with the addition of a selectable subsonic filter.

This is a standalone unit, requiring the purchase of an outboard G-Series power supply of your choice. This keeps AC, the main source of noise and EMI, away from these sensitive circuits meaning only clean, high capacity DC powers this component allowing for full use of the chassis for best routing and layout.

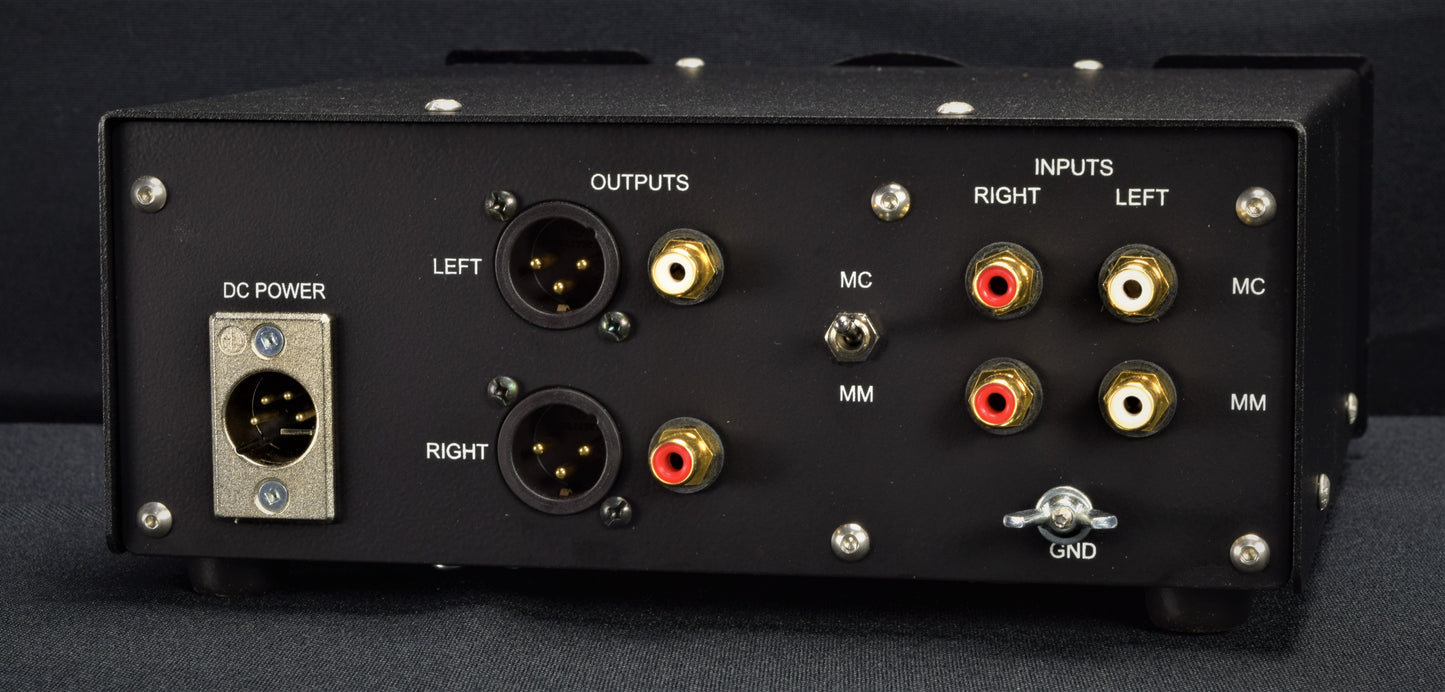

There are two sets of unbalanced RCA inputs on the rear of the P720, one set for moving magnet cartridges and the other for moving coil selected by the rear switch. Output comes standard as SE and balanced.

Specifications

Adjustable MC gain - 61db to 87db in 5 steps

38db of gain for MM

SE/BAL output

User adjustable internal impedance loading

User selectable sub-sonic filter

Standalone phono preamp, requires use of G-Series power supply

Shipping Information

If you are interested in purchasing the P720, please send me a message using the form below to start your build.
