i806 - 80wpc Integrated

The i806 is an a further upgraded version of the i802 integrated amplifier. Where the preamp out was an option on the i802, it comes standard in the i806. Internal capacitance has also been substantially upgraded with SP cap pack 5.1 and FCF 1.1 built into the chassis for a total of 1.026 million micro-Farads of internal capacitance. That is just over 1 Farad total!

Each i806 is custom built to order with point to point wiring for the best connection and clearest transmission of signal. The power supply features solid core 14ga copper conductors for high current capability that allows the amplifier to have more power and authority than the 80w rating would suggest.  Also characteristic of all Gilbert Yeung designs, the i806 is thoughtfully braced and dampened throughout with the artful application of silicone, no need for further isolation products as every detail has been considered including the resonance of the chassis panels. Learn More

Features

Controls are limited and simple, the main focus being only the music and on the sound. The three unbalanced inputs are selectable from the front mechanical switch for the best connection with no logic circuitry or relays in the signal path. A 4 pole, 3 position switch is used for the selector so that each channel has two points of contact, further improving the flow through the signal path and increasing longevity. All audio inputs and outputs are gold plated and will not oxidize, ensuring that your i806 is virtually maintenance free. There is also a rear mounted chassis ground lug, and a signal ground lift to pair quietly with all of your sources.

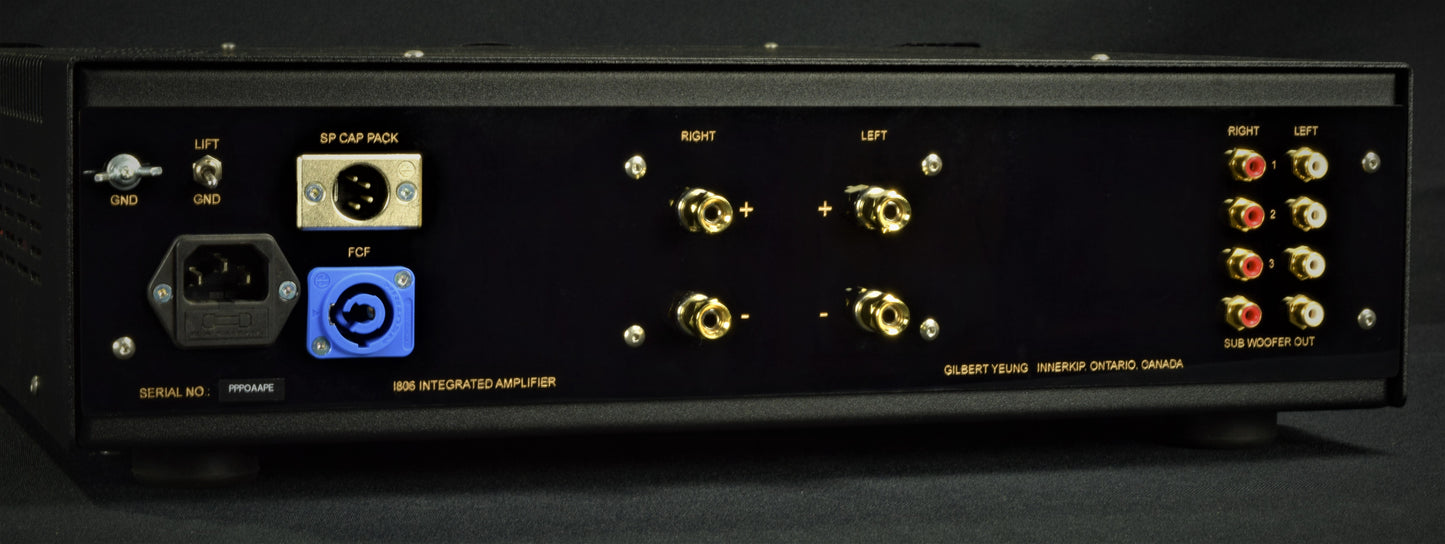

Also featured on the rear panel is an FCF and SP jack for a plug and play upgrade path with the purchase of a capacitor pack. What is an FCF?

SP and FCF capacitor packs can be purchased separately, or to upgrade both at once consider the SPF series of capacitor packs.

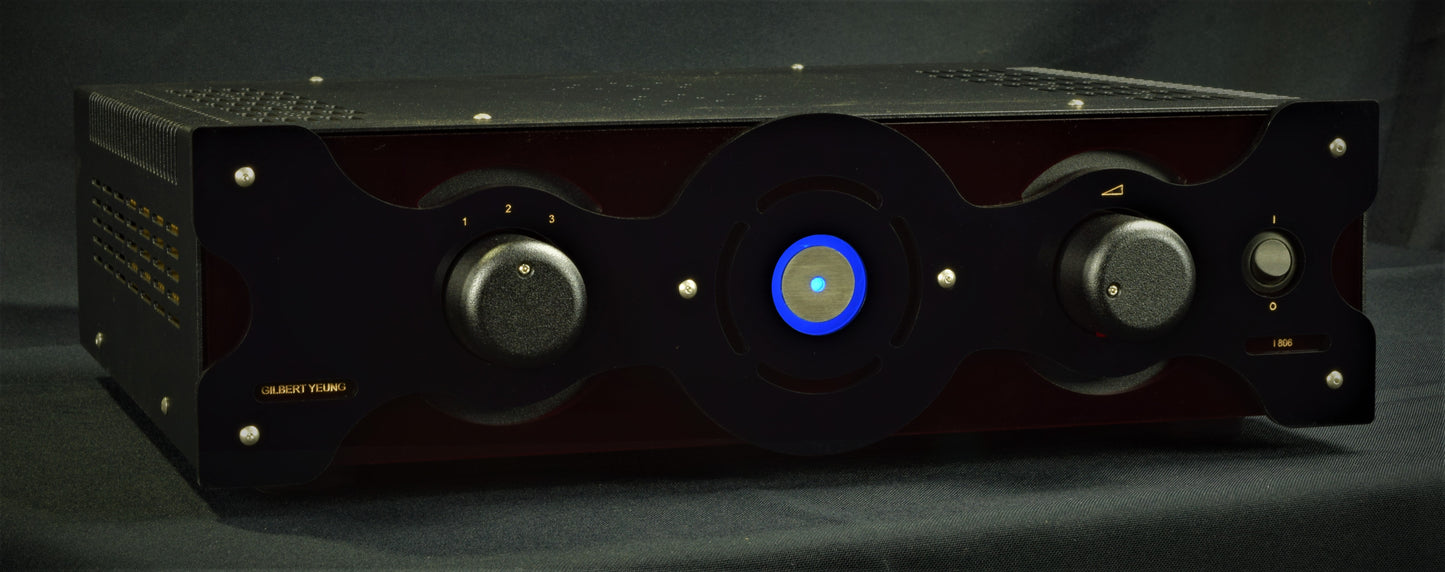

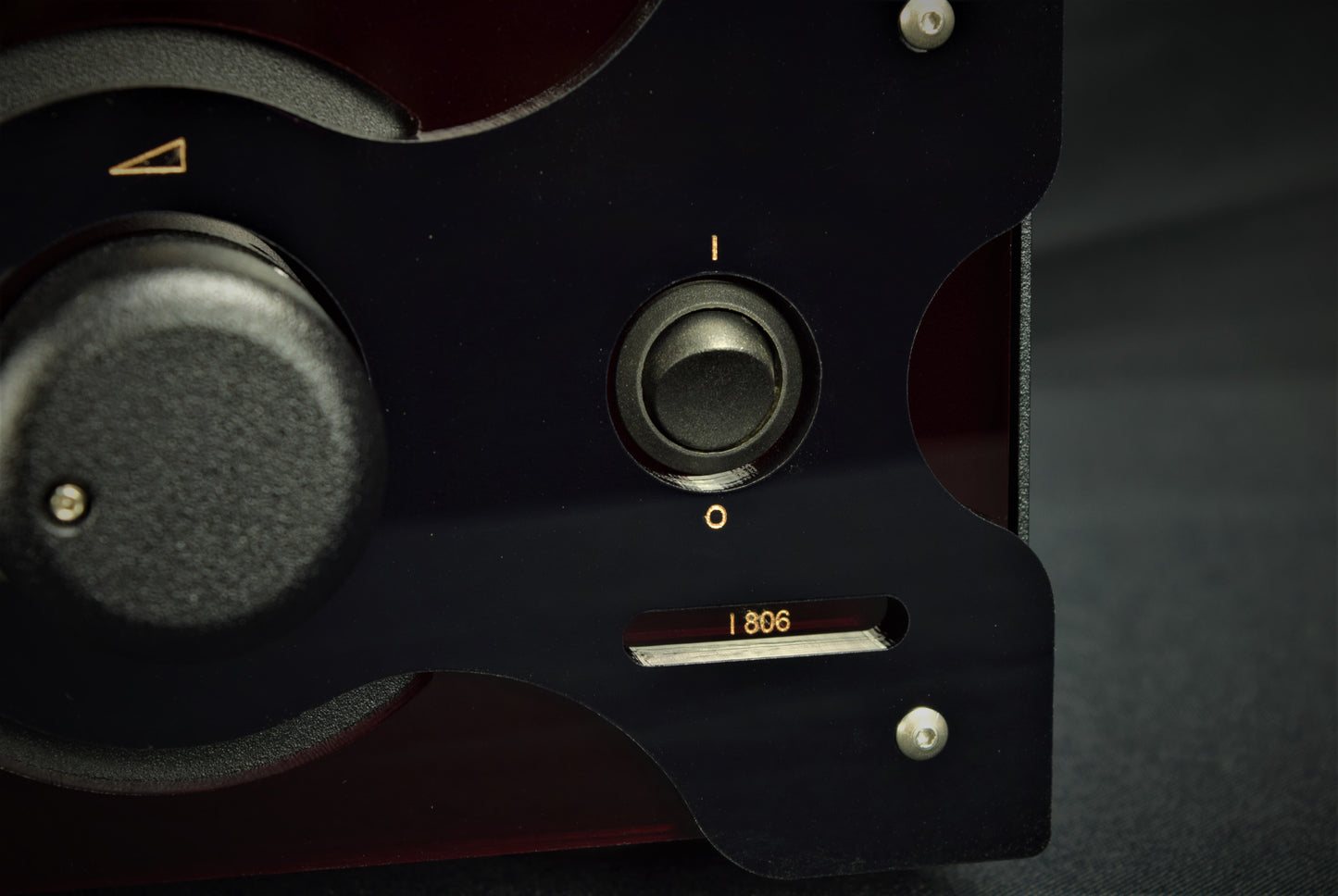

The i806 has a slightly larger chassis size than the i800, with it's own multilayer acrylic faceplate, the reflective black accented with deep red. The center blue circle glows a warm blue when powered on, with the circle seemingly flowing into the form and mirrored controls.

Specifications

80 watts into 8 ohms per channel

3 SE Line level inputs, preamp output standard

Optional line out

SP Capacitor jack and FCF jack installed for line stage and output stage "plug and play" upgrades

1.026 million micro Farads internal power capacitance

SP cap pack 5.1 and FCF 1.1 built in

Shipping Information

If you are interested in purchasing the i806, please send me a message using the form below to start your build.
