D521

The D521 digital to analog converter from Gilbert Yeung is a straightforward, single chassis converter that comes standard with TOSLINK, SPDIF, USB, and AES/EBU input. The power supply of the D521 has also been upgraded in comparison to the D520, featuring 2.2 million micro-Farads of internal capacitance, or 2.2 Farads.

There is no power switch, this device is designed to be left on at all times for best performance. The only control is the front mechanical input selection switch.

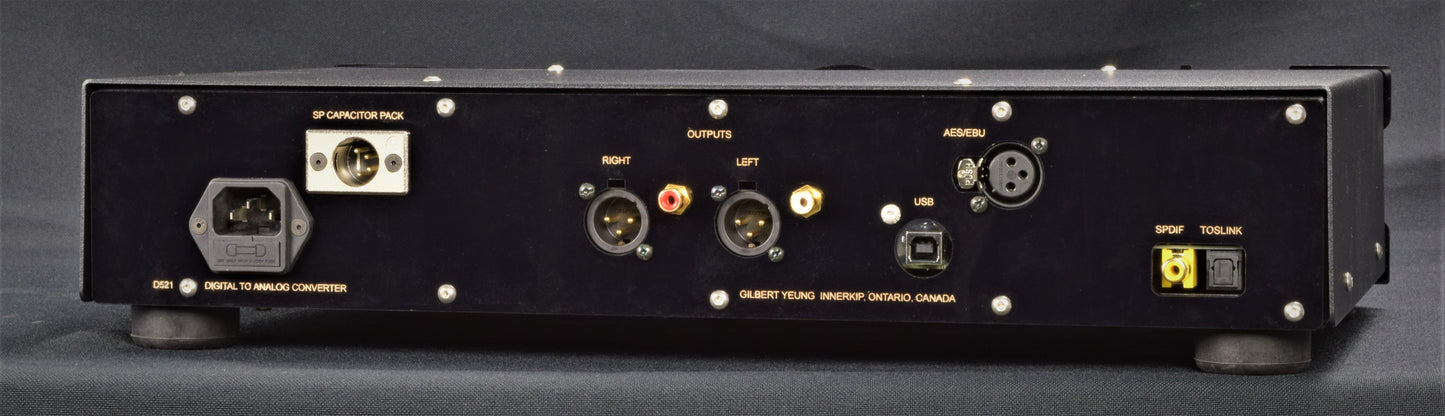

Output is either single ended, or balanced. An SP jack is preinstalled above the rear IEC for a future plug and play upgrade to the power supply with the purchase of an SP capacitor pack.

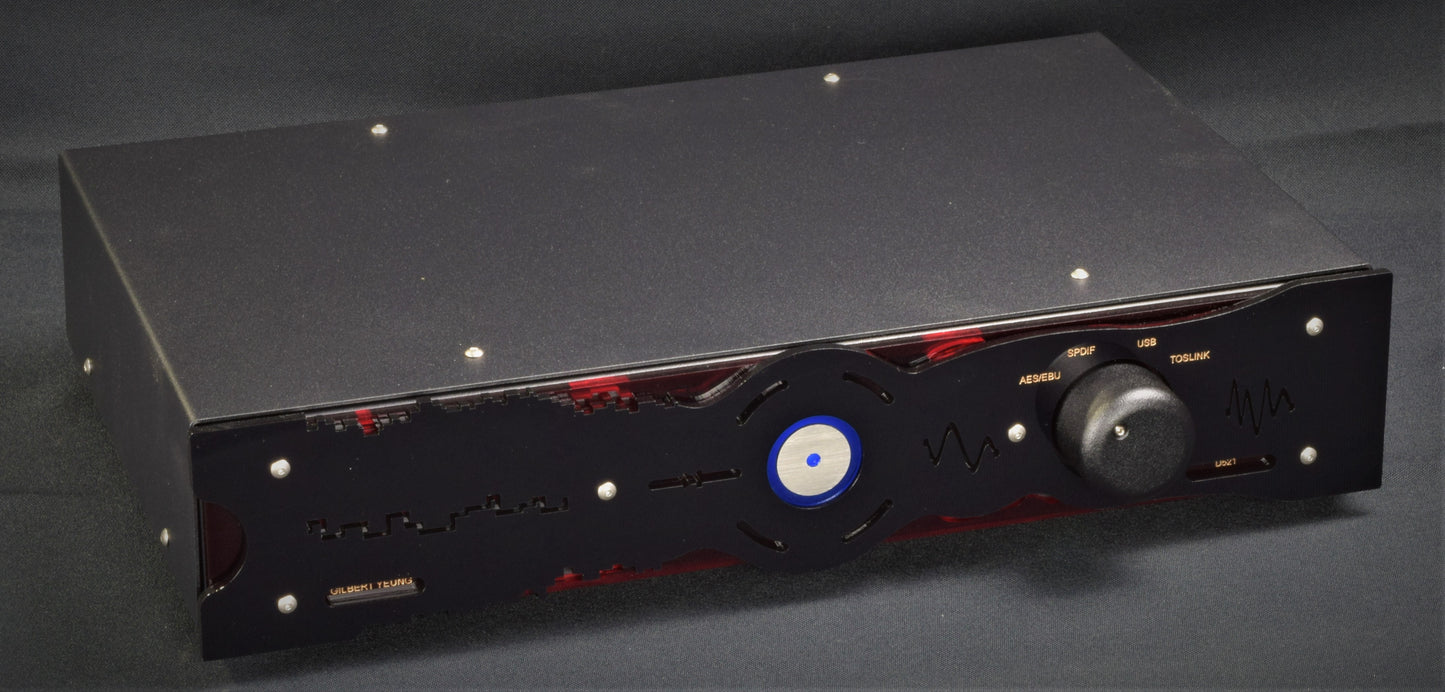

As with many of Angela - Gilbert Yeung's creations, the front faceplate is an artful representation of what the device is, and what it does. A stairstep is cut into the acrylic where it becomes a smooth flowing shape, signifying the conversion of digital signal to analog.

Specifications

SE and Balanced outputs

TOSLINK, SPDIF, AES/EBU, USB inputs

Full width chassis

2.2 Farads of internal power supply capacitance

SP jack preinstalled for future plug and play upgrade

Shipping Information

If you are interested in purchasing the D521 DAC, please send me a message using the form below to start your build.
